Automatic Customization Soldering Machine for PCB Board Robotic Soldering Machine

Name: Automatic Customization Soldering Machine for PCB Board Robotic Soldering Machine
Brand: Shenzhen Zhongtu Automation Technology Co., Ltd.
SKU: ZT-HXJ441-R
Price: 3,300.00 USD
Availability: InStock

Ürün Ayrıntıları

Menşe yeri: Çin

Marka adı: ZT

Sertifika: CE, ISO, RoHS

Model numarası: ZT-HXJ441-R

Ödeme ve Nakliye Şartları

Min sipariş miktarı: 1 set

Fiyat: USD 3100-3500/SET

Ambalaj bilgileri: Ahşap kutu

Teslim süresi: 15-30 Gün

Ödeme koşulları: T/T

Yetenek temini: 100 takım/ay

En İyi Fiyatı Alın

Ürün Ayrıntıları

Ürün Tanımı

Ürün Ayrıntıları

Vurgulamak:

eksen:	4	Spesifikasyon:	1007885cm
Boyutları:	35x 25 x 15cm	Lehim robotu:	PCB için lehimleme robotu
Elektronik parçalar:	elektronik otomatik lehim makinesi	Güç Kaynağı:	Elektrikli
havya:	Yüksek Kaliteli Havya	Hava kaynağı:	0.4-0.6MPa
Lehim Robert:	PCB için Robert lehimleme	Lehimleme akısı kapasitesi:	100ml
Lehimleme akımı tipi:	Sıvı

eksen:	4
Spesifikasyon:	1007885cm
Boyutları:	35x 25 x 15cm
Lehim robotu:	PCB için lehimleme robotu
Elektronik parçalar:	elektronik otomatik lehim makinesi
Güç Kaynağı:	Elektrikli
havya:	Yüksek Kaliteli Havya
Hava kaynağı:	0.4-0.6MPa
Lehim Robert:	PCB için Robert lehimleme
Lehimleme akısı kapasitesi:	100ml
Lehimleme akımı tipi:	Sıvı

Ürün Tanımı

Automatic Customization Soldering Machine for PCB Board Robotic Soldering Machine

This kind of automatic soldering machine can be very widely applied in the electronics production.

This kind of automatic soldering machine with double working stations can support different soldering work at the same time, which is quite efficient but precise and accurate.

It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process. Welding, widely used in PCB board welding line, charger plug welding, connector soldering, DC end tin, LED light strip connection and other fields.

Automatic soldering robots replace manual soldering to improve work efficiency and improve solder quality.

Overall, this machine is a vital asset for modern manufacturing.

Product Parameter

Name:	Automatic Soldering Robot	Place of Origin:	ShenZhen, China
Applicable Industries:	Manufacturing Plant, SMT , DIP	Key Selling Points:	Automatic
Video outgoing-inspection:	Provided	Weight (KG):	65Kg
Marketing Type:	New Product 2024	Voltage:	220/110V 50~60Hz
Warranty period:	1 Yea	Dimensions:	850750850mm
Warranty of core components:	3 Years	Solder Wire:	0.6~1.5mm solder wire
Core Components:	PLC	Temperature Accuracy	±3°
Power:	680W	Solder Feeding Speed	1~50mm/s
Current:	5A	Repeate Accuracy	±0.02mm

Specification

Model	ZT-HXJ041R	ZT-HXJ441-R	ZT-HXJ4411-02	ZT-HXJ4411-02R	Fixture Customization
Solder Power	200W	200/400w 600W	200/400W	200/400/600W	Need
Heating Temperature Range	0-550ºC
Machine Axis Number	4axis	4axis	4axis	5axis	Max moving speed
X Axis	400mm	400mm	400mm	400mm/2X	600mm/s
Y Axis	300mm	300mm/2Y	300mm/2Y	300mm/2Y	600mm/s
Z Axis	100mm	100mm	100mm	100mm	400mm/s
R Axis	360°	360°	0	360°	±0.05° Error
Temperature Errors	±2°
Tin Wire Diameter	φ0.6mm-1.5mm
Teaching File Capacity	256MB, up to 999 files, single file up to 1000 points
Air Pressure	4-5kg/cm²
Weight(Kg)	58Kg	68Kg	75Kg	85Kg	Customized
Size(mm)	600750850	800750850	850750850	1000750850	To order

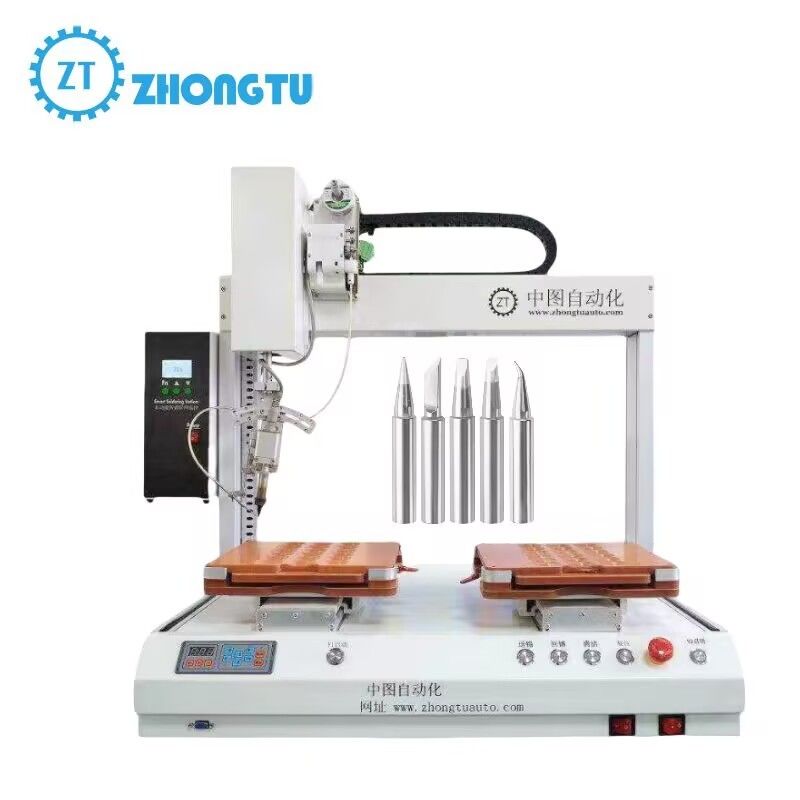

Detail Photos:

Automatic Customization Soldering Machine for PCB Board Robotic Soldering Machine 0

Automatic Customization Soldering Machine for PCB Board Robotic Soldering Machine 1

Automatic Customization Soldering Machine for PCB Board Robotic Soldering Machine 2

Automatic Customization Soldering Machine for PCB Board Robotic Soldering Machine 3

Our advantage

1.We are factory manufacturers.

2.Reduce overall cost.

3.Improve automation level.

4.Improve informatization level.

5.Improve product yield.

6.Provide Customers With the Most Advanced

System Solutions for Automation Equipment.

Our Services:

Pre-Sale	In Sale	After Sale
1.Product Introduction, 2.Technical Communication, 3.Remote consulting service.	1. Show the product, 2. Explain in detail how to use the product. 3. Answer the questions raised by customers.	1.Support video service. 2.The whole equipment is guaranteed for 1 year; 3.The guide rail/motor/control parts is guaranteed for 3 years.

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. Why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6. What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7. May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8. Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
